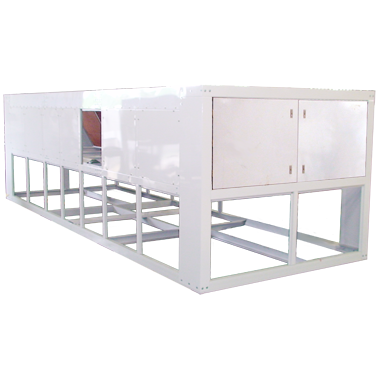

| Air Cooled Condensing Unit |
| |
 |
| Features/Benefits |
| - |
The PNSA-CU unit has a compact design that is up to
30% smaller than earlier air-cooled chillers. The
compact footprint can yield substantial installation
savings by requiring less structural steel, concrete,
security fencing or architectural screening. The
PNSA-CU unit is delivered as a complete package for
easy installation. A quick start-up is assured once
installation is complete, since each PNSA-CU unit
is manufactured at an ISO 9002 listed manufacturing
facility to ensure quality In addition, all units are factory
run tested under full
load to provide reliable start-up. |
| |
|
|
|
| Capacity Range From: |
50 - 225 Tons |
For More Detail: |
Download |
|
MODEL: PNSA-CU
(2 CIRCUITS) |
50 |
60 |
70 |
80 |
100 |
120 |
 |
|
|
|
|
|
| Nominal Cooling |
| Capacity |
BTUH |
594,800 |
648,600 |
772,200 |
895,800 |
1,189,600 |
1,297,200 |
| Tons |
49.57 |
54.05 |
64.35 |
74.65 |
99.13 |
108.1 |
| KWH |
174.3 |
190 |
226 |
263 |
349 |
380 |
| Compressor |
Type |
Semi-Hermetic |
| HP |
25 |
30 |
35 |
40 |
25 |
30 |
| Qty. |
2 |
2 |
2 |
2 |
4 |
4 |
| Condenser Coil |
| Type/Material |
Plate Fin / Aluminium Fin & Copper Tube |
| Face area |
Sq. Ft. |
69.4 |
100.7 |
100.7 |
100.7 |
138.8 |
138.9 |
| Rows..Fins/In |
3....14 |
2....14 |
3....14 |
4....14 |
3....14 |
4....14 |
| Tube Size |
Inch |
1/2 |
| Condenser Fan |
| Fan |
| Type |
Propeller Fan : Vertical Discharge : Direct Drive |
| Diameter |
Inch |
30 |
| Motor |
| HP. |
1 |
| Rpm. |
900 |
| Qty. |
4 |
6 |
6 |
6 |
8 |
8 |
| Air Quantity |
CFM |
40,000 |
60,000 |
60,000 |
60,000 |
96,000 |
96,000 |
| CMH |
68,000 |
102,000 |
102,000 |
102,000 |
163,200 |
163,200 |
| Refrigerant |
Type |
R-22 (R-407C On Request Only) |
| Charge |
Holding |
| Compressor |
| V/PH/Hz |
380V / 3P / 50Hz |
| 440V / 3P / 60Hz |
| RLA. |
Amp. |
56 |
68 |
67.5 |
95 |
56 |
68 |
| LRA. |
Amp. |
223 |
253 |
225 |
345 |
223 |
253 |
| Fan Motor |
| V/PH/Hz |
380V / 3P / 50Hz |
| 440V / 3P / 60Hz |
| RLA. |
Amp. |
2.3 |
| Operation Weight |
Kgs. |
1416 |
1724 |
1906 |
2767 |
2835 |
3262 |
|
| |
MODEL: PNSA-CU
(2 CIRCUITS) |
140 |
160 |
180 |
210 |
240 |
| Nominal Cooling Capacity |
BTUH |
1,544,400 |
1,791,600 |
1,945,800 |
2,316,600 |
2,687,400 |
| Tons |
128.7 |
149.3 |
162.15 |
193.05 |
223.95 |
| KWH |
453 |
525 |
570 |
678.8 |
787.4 |
| Compressor |
Type |
|
|
|
|
|
| HP |
35 |
40 |
30 |
35 |
40 |
| Qty. |
4 |
4 |
6 |
6 |
6 |
| Condenser Coil |
| Type/Material |
Plate Fin / Aluminium Fin & Copper Tube |
| Face area |
Sq. Ft. |
170.1 |
170.1 |
201.4 |
201.4 |
239.6 |
| Rows..Fins/In |
3....14 |
4....14 |
| Tube Size |
Inch |
1/2 |
| Condenser Fan |
| Fan |
|
| Type |
Propeller Fan : Vertical Discharge : Direct Drive |
| Diameter |
Inch |
30 |
| Motor |
|
| HP. |
1 |
| Rpm. |
900 |
| Qty. |
10 |
10 |
12 |
12 |
14 |
| Air Quantity |
CFM |
120,000 |
120,000 |
144,000 |
144,000 |
168,000 |
| CMH |
204,000 |
204,000 |
244,800 |
244,800 |
285,600 |
| Refrigerant |
Type |
R-22 (R-407C On Request Only) |
| Charge |
Holding |
| Compressor |
| V / PH / Hz |
380V / 3P / 50Hz |
| 440V / 3P / 60Hz |
| RLA. |
Amp. |
67.5 |
95 |
68 |
67.5 |
95 |
| LRA. |
Amp. |
225 |
345 |
253 |
225 |
345 |
| Fan Motor |
| V / PH / Hz |
380V / 3P / 50Hz |
| 440V / 3P / 60Hz |
| RLA. |
Amp. |
2.3 |
| Operation Weight |
Kgs. |
4569 |
5132 |
5151 |
5262 |
5450 |
|
|
