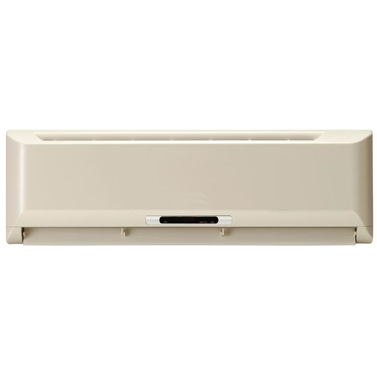

| Wall Mounted Fan Coil Unit |
| |
 |
| Features/Benefits |
| - |
Blue Coil, an additional coating of anti-corrosion to prevent
the coil
to corroding. |
| |
|
|
|
| Capacity Range From: |
1 - 2 Tons |
For More Detail: |
Download |
|
| MODEL: WFC-DX |
09 |
13 |
18 |
25 |
| Nominal Capacity |
|
 |
|
|
|
| BTUH |
9,110 |
13,020 |
17,950 |
23,540 |
| Tons |
1 |
1 |
2 |
2 |
| WATT |
2,670 |
3,816 |
5,261 |
6,900 |
| Rated Air Flow At High Speed |
CFM |
314 |
473 |
607 |
699 |
| CMH |
533 |
803 |
1,031 |
1,187 |
| Fan Coil Unit |
TYPE |
Free Blow Wall Mounted Type |
| Evaporator Fan |
TYPE |
Cross Flow Fan |
| Motor |
WATT |
20 |
25 |
36 |
| Power Supply |
V/P/Hz |
220V / 1P/ 50Hz |
|
V/P/Hz |
208V / 1P/ 60Hz |
| Coil |
TYPE |
Aluminium Louver Slit Fin With Innergroove Tube |
| Control |
TYPE |
Built In Digital Thermostat |
| Expansion Device |
TYPE |
Capillary Tube |
| Air Filter |
TYPE |
Washable P. P. Net |
| Connection |
| Suction Line |
INCH (OD) |
1/2 |
5/8 |
| Liquid Line |
INCH (OD) |
1/4 |
3/8 |
| Weight |
KGS. |
9 |
13 |
17 |
18 |
Condensing Unit
GS-V / FG-H |
TYPE |
Horizontal Blow Steel Cabinat Type / Vertical Blow Fibre Glass
Cabinat Rotory |
| Compressor |
TYPE |
| Power Output |
WATT |
24 |
36 |
115 |
570 |
| Protection Devices |
TYPE |
Internal Overload Protection |
| Power Supply |
V / P / Hz |
220V / 1P / 50Hz |
|
V / P / Hz |
220V / 1P / 60Hz |
| Condenser Fan |
TYPE |
Propeller Fan |
| Refrigerant (Holding Charge) |
TYPE |
R-22 (R-407C On Requset Only) |
| Connection |
| Suction Line |
TYPE |
1/2 |
5/8 |
| Liquid Line |
TYPE |
1/4 |
3/8 |
| Weight |
KGS. |
33 |
41 |
73 |
73 |
|
| |
|
