| Ceiling Conceal Unit |
| |
 |
| Features/Benefits |
| - |

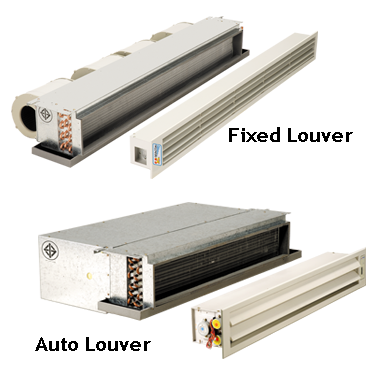

Concealed ceiling units are built into the false ceiling,
leaving only the suction and discharge grilles visible.
Because of this the grilles can be placed wherever you
want and blend with any interior decor. The grilles
allow uniform temperature distribution in large or heavily
partitioned areas. Not only are concealed ceiling units
visually unobtrusive, they are also among the quietest
types of air conditioning. |
| |
|
|
|
| Capacity Range From: |
0.83 - 5 Tons |
For More Detail: |
Download |
|
| INDOOR UNIT |
| MODEL: CCHB / CCHP |
300 |
400 |
600 |
800 |
1000 |
| Nominal Capacity |
|
 |
|
|
|
|
| BTUH |
10,000 |
12,000 |
18,000 |
24,000 |
30,000 |
| Tons |
0.83 |
1 |
1.5 |
2 |
2.5 |
| Watt |
2,928 |
3,514 |
5,271 |
7,027 |
8,784 |
| Evaporator Blower |
Type |
Multi Blade Centrifugal Blower |
| Air Flow Rate |
CFM |
300 |
400 |
800 |
800 |
1,000 |
| CMH |
510 |
680 |
1,359 |
1,359 |
1,699 |
| Rated Power Input |
Watt |
1,016 |
1,273 |
1,875 |
2,595 |
2,955 |
| Rated Current |
Amp. |
4.95 |
6.91 |
10.1 |
12.5 |
18.29 |
| EER |
W/W |
2.88 |
2.76 |
2.81 |
2.71 |
2.97 |
| Motor |
|
| Power |
Watt |
30 |
65 |
130 |
| Current |
|
0.4 |
0.7 |
1 |
| Power Supply |
V/P/Hz |
220-208V/1P/50-60Hz |
| Connection |
| Suction Line (OD) |
Inch |
1/2 |
5/8 |
3/4 |
| Liquid Line (OD) |
Inch |
3/8 |
| Water In & Out (OD) |
Inch |
1/4 |
| Weight |
KGS. |
20 |
26 |
31 |
37 |
| Condensing Unit |
| MODEL: GS-CU / FG-CU |
10 |
12 |
18 |
25 |
30 |
| Compressor |
Type |
Rotory / Scroll / Reciprocating |
| Power |
Watt |
953 |
1,203 |
1,956 |
2,476 |
2,776 |
| Current |
Amp. |
4.2 |
6.16 |
8.9 |
10.91 |
16.4 |
| Power Supply |
V/P/Hz |
220-208V/1P/50-60Hz |
| Fan |
Type |
Propeller Fan “Plastic“ |
| Qty. |
1 |
| Motor |
| Power |
Watt |
33 |
57 |
117 |
| Current |
Amp. |
0.35 |
0.5 |
0.89 |
| Power Supply |
V/P/Hz |
220-208V/1P/50-60Hz |
| Coil |
Type |
Aluminium Louver Fin With Inner Groove Copper Tube |
| CONNECTION |
| Suction Line (OD) |
Inch |
1/2 |
5/8 |
3/4 |
| Liquid Line (OD) |
Inch |
3/8 |
| Weight |
KGS. |
44 |
48 |
64 |
75 |
88 |
| Refrigerant |
Type |
R-22 (R-407C On Request Only) |
| INDOOR UNIT |
|
|
|
|
|
| MODEL: CCHB / CCHP |
1200 |
1200 |
1600 |
2000 |
| Nominal Capacity |
|
|
|
|
|
| BTUH |
36,000 |
36,000 |
50,000 |
60,000 |
| Tons |
3 |
3 |
4.17 |
5 |
| Watt |
10,541 |
10,541 |
14,641 |
17,569 |
| Evaporator Blower |
Type |
Multi Blade Centrifugal Blower |
| Air Flow Rate |
CFM |
1,200 |
1,200 |
1,600 |
2,000 |
| CMH |
2,039 |
2,039 |
2,718 |
3,398 |
| Rated Power Input |
Watt |
3,437 |
3,407 |
5,114 |
5,934 |
| Rated Current |
Amp. |
19.39 |
9.39 |
12.68 |
13.78 |
| EER |
W/W |
3.07 |
3.09 |
2.86 |
2.96 |
| Motor |
|
|
| Power |
Watt |
65 x 2 |
130 x 2 |
| Current |
|
0.7 x 2 |
1 x 2 |
| Power Supply |
V/P/Hz |
220-208V/1P/50-60Hz |
| Connection |
|
|
| Suction Line (OD) |
Inch |
3/4 |
| Liquid Line (OD) |
Inch |
3/8 |
1/2 |
| Water In & Out (OD) |
Inch |
1/4 |
| Weight |
KGS. |
47 |
58 |
70 |
| Condensing Unit |
|
|
| MODEL: GS-CU / FG-CU |
361 |
363 |
50 |
60 |
| Compressor |
Type |
Rotory / Scroll / Reciprocating |
| Power |
Watt |
3,196 |
3,166 |
4,582 |
5,402 |
| Current |
Amp. |
17.1 |
7.1 |
9.79 |
10.89 |
| Power Supply |
V/P/Hz |
220-208V/1P/50-60Hz |
380-440V/1P/50-60Hz |
| Fan |
Type |
Propeller Fan “Plastic“ |
| Qty. |
1 |
2 |
| Motor |
|
|
| Power |
Watt |
117 |
117 x 2 |
| Current |
Amp. |
0.89 |
| Power Supply |
V/P/Hz |
220-208V/1P/50-60Hz |
380-440V/1P/50-60Hz |
| Coil |
Type |
Aluminium Louver Fin With Inner Groove Copper Tube |
| CONNECTION |
|
|
| Suction Line (OD) |
Inch |
3/4 |
| Liquid Line (OD) |
Inch |
3/8 |
1/2 |
| Weight |
KGS. |
92 |
110 |
120 |
| Refrigerant |
Type |
R-22 (R-407C On Request Only) |
|
|
