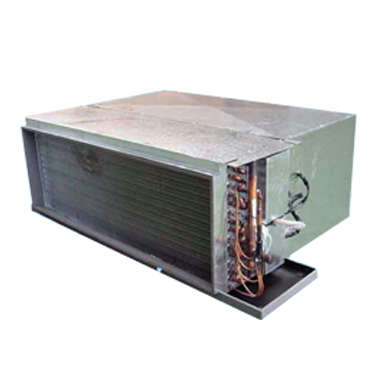

| Ceiling Conceal Unit |
| |
 |
| Features/Benefits |
| - |
Concealed ceiling units are built into the false ceiling,
leaving only the suction and discharge grilles visible.
Because of this the grilles can be placed wherever you
want and blend with any interior decor. The grilles
allow uniform temperature distribution in large or
heavily
partitioned areas. Not only are concealed ceiling units
visually unobtrusive, they are also among the
quietest
types of air conditioning. |
| |
|
|
|
| Capacity Range From: |
1 - 5 Tons |
For More Detail: |
Download |
|
| INDOOR UNIT |
| MODEL: CCHMS |
400 |
600 |
1000 |
1200 |
1600 |
2000 |
| Nominal Capacity |
|
 |
|
|
|
|
|
| BTUH |
12,500 |
20,000 |
30,000 |
36,000 |
50,000 |
60,000 |
| Tons |
1 |
1.8 |
2.5 |
3 |
4.17 |
5 |
| Watt |
3,660 |
5,860 |
8,784 |
10,541 |
14,641 |
17,569 |
| Evaporator Blower |
Type |
Multi Blade Centrifugal Blower |
| Air Flow Rate |
CFM |
400 |
600 |
1000 |
1,200 |
1,600 |
2,000 |
|
CMH |
680 |
1,020 |
1,700 |
2,040 |
2,720 |
3,400 |
| Motor |
| Rated Power Input |
Watt |
120 |
190 |
120 x 2 |
190 x 2 |
| Rated Current |
Amp. |
0.98 |
1.45 |
0.98 x 2 |
1.45 x 2 |
| Power Supply |
V/P/Hz |
220 / 1 / 50 / 60 |
| Coil |
| Type |
Aluminium Louver Slit Fin With Innergroove Copper Tube |
| Static Pressure |
80 |
| Air Filter |
Washable Pp. Net |
| Insulation |
5 mm Rubber For Casing / 5 mm Polyethylene For Drain Pan |
| Connection |
| Suction Line (OD) |
Inch |
1/2 |
5/8 |
3/4 |
| Liquid Line (OD) |
Inch |
3/8 |
1/2 |
| Water In & Out (OD) |
Inch |
1/4 |
|
| NOTES: |
-
- |
Capacity Are Base On 28 °C DB, 19 °C WB Entering
35 °C Ambient Tenp., 7 °C Suction Temp. |
|
|
