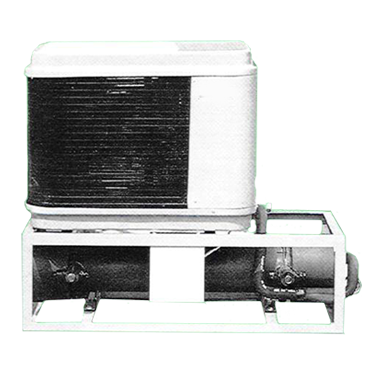

Package Air Cooled Chiller Unit |
|
![](Aircon/ACI-29.1.png) |
Features/Benefits |
- |
The PNSA-CWB-H unit has a compact design that is
up to 50% smaller than earlier air-cooled chillers. The
compact footprint can yield substantial installation
savings by requiring less structural steel, concrete,
security fencing or architectural screening. The
PNSA-CWB-H unit is delivered as a complete package
for easy installation.A quick start-up is assured once
installation is complete, since each PNSA-CWB-H unit
is manufactured at an ISO 9002 listed manufacturing
facility to ensure quality In addition, all units are factory
run tested under full load to provide reliable start-up. |
|
|
|
|
Capacity Range From: |
1.9 - 4.5 Tons |
For More Detail: |
Download |
|
MODEL: PNSA-CWB-H |
25 |
30 |
36 |
50 |
60 |
Nominal Cooling Capacity |
|
![Purchase](images/Purchaselogo.png) |
![Purchase](images/Purchaselogo.png) |
![Purchase](images/Purchaselogo.png) |
![Purchase](images/Purchaselogo.png) |
![Purchase](images/Purchaselogo.png) |
BTUH |
22,680 |
26,770 |
32,900 |
45,500 |
54,400 |
Tons |
1.9 |
2.2 |
2.7 |
3.8 |
4.5 |
KW |
7 |
8 |
10 |
13 |
16 |
Compressor |
Type |
ROTARY |
SCROLL |
SCROLL |
SCROLL |
SCROLL |
HP. |
37,258 |
37,258 |
3 |
37,260 |
6 |
Qty./Unit |
1 |
Condenser Coil |
Type/Material |
Aluminium Louver Slit Fin With Innergroove Copper Tube |
Face area |
Sq. Ft. |
6.72 |
9 |
9 |
11 |
11 |
Rows..Fins/In |
1.73/12 |
1.0/12 |
1.6/12 |
1.67/12 |
2.0/12 |
Tube Size |
Inch |
3/8” |
Compressor Fan |
TYPE |
Propeller Fan : Vertical Discharge : Direct Drive |
Diameter |
Inch |
18” |
Diameter |
mm |
457 |
Motor |
Each Motor |
HP. |
1/12 |
1/6 |
1/6 |
1/3 |
1/3 |
Rpm. |
780 |
900 |
900 |
1200 |
1200 |
Qty. |
1 |
Refrigerant |
Type |
R-22 (R-407C On Request Only) |
Charge |
Holding |
WATER CHILLER |
No. of Circuits |
1 |
Chilled Water Flowrate |
GPM |
4.54 |
5.358 |
6.46 |
9.1 |
10.88 |
Chilled Water Temp.
In/Out |
° F |
55 / 45 |
° C |
13 / 7 |
Chilled Water
Pressure Drop |
Ft. WG |
1.52 |
1.02 |
1.34 |
2.26 |
3.32 |
Water Connection
In / Out |
inch |
3/4 |
3/4 |
3/4 |
1 |
1 |
mm |
19 |
19 |
19 |
25 |
25 |
Compressor (Each) |
V / PH / Hz |
208-220/1/50-60 |
380-440/3/50-60 |
RLA. |
14.3 |
16.4 |
17.1 |
8.9 |
10 |
LRA. |
55 |
82 |
97 |
65.5 |
74 |
Fan Motor |
V / PH / Hz |
208-220V / 1P / 50-60Hz |
RLA. |
0.5 |
0.89 |
0.89 |
1.82 |
1.82 |
Weight Operation |
Kgs |
148 |
160 |
165 |
210 |
216 |
|
|
|
NOTES: |
-
-
-
-
-
-
- |
RLA = Rated Load Amp.
LRA = Locked Rotor Amp.
* Nominal Cooling Capacity Based on 3°C Suction Temp. and 35 °C Ambient Temp.
Fouling Factor 0.0005 Ft ².h.F / Btu in Chiller
Temperature: 1 °C = 33.8 °F
1 °F = -17.2 °C
Air Flow: 1 CFM = 1.699011 CMH |
|
|
|
