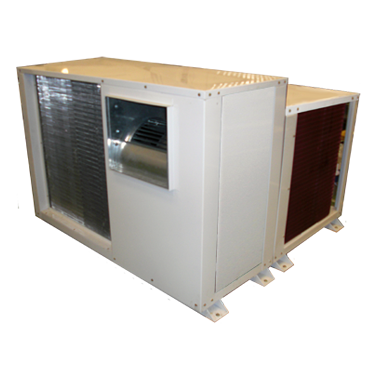

Package Air Cooled Roof Top Unit |
|
![](Aircon/ACI-02.1.png) |
Features/Benefits |
-
-
-
-
-
-
-
-
-
- |
Wide range of indoor airflows.
Solid foundation to protect the unit during shipment
and rigging holes for overhead crane.
Electrical supply connections and knockouts
provided.
Multiple refrigeration circuits.
Durable construction.
Low noise.
Hermetic compressors for model 006 to 024.
Semi-hermetic compressors for model 030 and 040.
HP and LP cut-out switches.
Electrical panel. |
|
|
|
|
Capacity Range From: |
5 - 13 Tons |
For More Detail: |
Download |
|
MODEL :PNSA-RT C / H |
006 |
008 |
009 |
010 |
012 |
016 |
Cooling Capacity |
|
![Purchase](images/Purchaselogo.png) |
![Purchase](images/Purchaselogo.png) |
![Purchase](images/Purchaselogo.png) |
![Purchase](images/Purchaselogo.png) |
![Purchase](images/Purchaselogo.png) |
![Purchase](images/Purchaselogo.png) |
BTUH |
60,000 |
80,000 |
92,000 |
108,000 |
120,000 |
160,000 |
Tons |
5 |
7 |
8 |
9 |
10 |
13 |
kW |
17.6 |
23.4 |
27.0 |
31.6 |
35.2 |
46.9 |
Heating Capacity |
BTUH |
69,000 |
92,000 |
105,800 |
124,200 |
138,000 |
184,000 |
Tons |
6 |
8 |
9 |
10 |
12 |
15 |
kW |
20 |
27 |
31 |
36 |
40 |
54 |
Nominal Air Flow |
CFM |
2,000 |
2,700 |
3,100 |
3,600 |
4,000 |
5,300 |
CMH |
3,400 |
4,590 |
5,270 |
6,120 |
6,800 |
9,010 |
L/S |
940 |
1,270 |
1,460 |
1,700 |
1,880 |
2,500 |
Air Pressure Drop |
Pa |
150-250 |
Condensing Unit |
Compressor Type |
Scroll - Hermetic |
Quantity |
1 |
1 |
1 |
1 |
1 |
2 |
Refrigerant |
R-22 (R-407C ON REQUEST ONLY) |
Power Supply |
V/Ph/Hz |
[380 ~ 415V / 3P / 50Hz] [ 440 ~ 480V / 3P / 60Hz ] |
Rated Current (Amps) |
380V |
10.00 |
16.4 |
17.30 |
19.2 |
19.60 |
16.4x2 |
415V |
9.2 |
15 |
15.8 |
17.6 |
17.9 |
15.0x2 |
440V |
8.6 |
14.2 |
14.9 |
16.6 |
16.9 |
14.2x2 |
460V |
8.3 |
13.5 |
14.3 |
15.9 |
16.2 |
13.5x2 |
480V |
7.9 |
13.0 |
13.7 |
15.2 |
15.5 |
13.0x2 |
Power Input |
kW |
5.25 |
6.88 |
7.89 |
9.11 |
10.18 |
6.88x2 |
Fan Motor |
HP |
3/4 |
3/4 |
3/4 |
1/3 |
1/3 |
3/4 |
Fan Type |
PROPELLER |
Condenser Type |
COPPER TUBE AND ALUMINIUM FINS / COPPER FINS |
Evaporator |
Evaporator Type |
COPPER TUBE AND ALUMINIUM FINS / COPPER FINS |
Blower Motor |
HP |
1 |
1 |
2 |
2 |
2 |
2 |
Amps |
2 |
2 |
3.6 |
3.6 |
3.6 |
3.6 |
QTY |
1 |
1 |
1 |
1 |
1 |
1 |
Weight * |
KG |
170 |
300 |
360 |
480 |
520 |
660 |
|
|
MODEL :PNSA-RT C / H |
018 |
020 |
024 |
030 |
040 |
Cooling Capacity |
|
![Purchase](images/Purchaselogo.png) |
![Purchase](images/Purchaselogo.png) |
![Purchase](images/Purchaselogo.png) |
![Purchase](images/Purchaselogo.png) |
![Purchase](images/Purchaselogo.png) |
BTUH |
184,000 |
216,000 |
240,000 |
300,000 |
400,000 |
Tons |
15 |
18 |
20 |
25 |
33 |
kW |
53.9 |
63.3 |
70.3 |
87.9 |
117.2 |
Heating Capacity |
BTUH |
211,600 |
248,400 |
276,000 |
345,000 |
460,000 |
Tons |
18 |
20.7 |
23 |
28.75 |
38.33 |
kW |
62 |
73 |
81 |
101.1 |
134.8 |
Nominal Air Flow |
CFM |
6,100 |
7,200 |
8,000 |
10,000 |
13,300 |
CMH |
10,370 |
12,240 |
13,600 |
17,000 |
22,610 |
L/S |
2,870 |
3,390 |
3,770 |
4710 |
6260 |
Air Pressure Drop |
Pa |
150-250 |
Condensing Unit |
Compressor Type |
Scroll - Hermetic |
Semi-Hermetic |
Quantity |
2 |
2 |
2 |
1 |
1 |
Refrigerant |
R-22 (R-407C ON REQUEST ONLY) |
Power Supply |
V/Ph/Hz |
[380 ~ 415V / 3P / 50Hz] [ 440 ~ 480V / 3P / 60Hz ] |
Rated Current (Amps) |
380V |
17.3x2 |
19.2x2 |
19.6x2 |
52.1 |
75.7 |
415V |
15.8x2 |
17.6x2 |
17.9x2 |
47.7 |
69.3 |
440V |
14.9x2 |
16.6x2 |
16.9x2 |
45 |
65.4 |
460V |
14.3x2 |
15.9x2 |
16.2x2 |
43 |
62.5 |
480V |
13.7x2 |
15.2x2 |
15.5x2 |
41.2 |
59.9 |
Power Input |
kW |
7.89x2 |
9.11x2 |
10.18x2 |
33.31 |
46.09 |
Fan Motor |
HP |
3/4 |
3/4 |
1 |
1 |
1 |
Fan Type |
PROPELLER |
Condenser Type |
COPPER TUBE AND ALUMINIUM FINS / COPPER FINS |
Evaporator |
Evaporator Type |
COPPER TUBE AND ALUMINIUM FINS / COPPER FINS |
Blower Motor |
HP |
3 |
3 |
5 |
7.5 |
10 |
Amps |
5.2 |
5.2 |
8.4 |
12 |
16 |
QTY |
1 |
1 |
1 |
1 |
1 |
Weight * |
KG |
780 |
820 |
970 |
1,100 |
1,250 |
|
NOTES: |
-
-
-
-
-
- |
CAPACITY BASED ON 27 °CDB, 19 °CWB AIR ENTERING.
35 °C AMBIENT TEMP. AND 7°C SUCTION TEMP.
Temperature: 1 °C = 33.8 °F
1 °F = -17.2 °C
Air Flow: 1 CFM = 1.699011 CMH
For Stainless Steel Unit, The Weight Will Be Standart Weight x 1.57 Times. |
|
|
