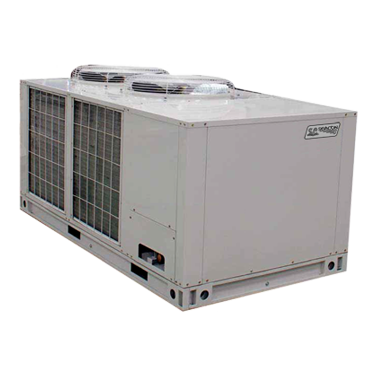

| Package Air Cooled Chiller Unit |
| |
 |
| Features/Benefits |
| - |
The PNSA-CWB unit has a compact design that is up
to 50% smaller than earlier air-cooled chillers. The
compact footprint can yield substantial installation
savings by requiring less structural steel, concrete,
security fencing or architectural screening. The
PNSA-CWB unit is delivered as a complete package
for easy installation.A quick start-up is assured once
installation is complete, since each PNSA-CWB unit is manufactured at an ISO 9002 listed manufacturing
facility to ensure quality In addition, all units are factory
run tested under full load to provide reliable start-up. |
| |
 |
| |
|
|
|
| Capacity Range From: |
6.7 - 32.4 Tons |
For More Detail: |
Download |
|
| MODEL: PNSA-U-CWB |
007 |
009 |
010 |
012 |
015 |
| Nominal Cooling Capacity |
|
 |
|
|
|
|
| BTUH |
70,000 |
80,000 |
95,000 |
120,000 |
145,000 |
| Tons |
6.7 |
7.6 |
9.6 |
10.4 |
12.8 |
| KWH |
23 |
27 |
34 |
37 |
45 |
| Rated Voltage |
380V / 3P / 50Hz - 440V / 3P / 60Hz |
| Power Consumption |
7.39 |
8.67 |
10 |
12 |
14 |
| Compressor Type |
HERMETIC ( SCROLL ) |
| Circuit |
1 |
| Condenser Coil |
Type |
Aluminium / Copper Corrugated Fin With Inner Groove Copper Tube |
| Face area |
Sq. Ft. |
14.22 |
24 |
32 |
| Rows..Fins/In |
2....16 |
| Tube Size |
Inch |
3/8 |
| Condenser Fan |
Type |
Propeller Fan : Vertical Discharge : Direct Drive |
| Diameter |
Inch |
24 |
30 |
24 |
| Diameter |
mm |
610 |
761 |
610 |
| Rpm. |
900 |
| Qty. |
1 |
2 |
| Each Motor |
H.P. |
3/4 |
1 |
3/4 |
| Air Quantity |
CFM |
7,000 |
8,000 |
10,000 |
14,000 |
| Refrigerant |
Type |
R-22 (R-407C On Requset Only) |
| Charge |
Nitrogen |
| Water Chiller |
Type |
Plate Heat Exchanger |
| Chilled Water Flowrate |
GPM |
14 |
16 |
19 |
24 |
29 |
Chilled Water Temp.
In / Out |
Deg. C |
12.8 / 7.2 |
| Chilled Water pressure Drop |
Ft. WG |
7.38 |
6.71 |
6.87 |
6.07 |
7.5 |
| Water Connection In / Out |
Inch |
1 |
1-1/4 |
| Compressor (Each) |
V/P/Hz |
415 / 3 / 50 ~ 440 / 3 / 60 |
| Power Input |
Watt |
6,542 |
7,821 |
8,957 |
10,800 |
13,622 |
| FLA. |
Amp. |
12.1 |
14.3 |
20.7 |
22.9 |
24.2 |
| LRA. |
Amp. |
98 |
130 |
145 |
175 |
| Fan Motor (Each) |
V/P/Hz |
415 / 3 / 50 ~ 440 / 3 / 60 |
| Power Input (Watt) |
Watt |
850 |
1,470 |
850 |
| FLA. |
Amp. |
1.2 |
2.3 |
1.2 |
| Weight Operation |
Kgs. |
214 |
233 |
302 |
337 |
427 |
| MODEL: PNSA-U-CWB |
020 |
025 |
030 |
040 |
| Nominal Cooling Capacity |
|
|
|
|
|
| BTUH |
185,000 |
240,000 |
290,000 |
370,000 |
| Tons |
15.7 |
19.2 |
23.3 |
32.4 |
| KWH |
55 |
67 |
81.8 |
114 |
| Rated Voltage |
380V / 3P / 50Hz - 440V / 3P / 60Hz |
| Power Consumption |
19 |
23 |
29 |
38 |
| Compressor Type |
HERMETIC ( SCROLL ) |
| Circuit |
1 |
2 |
| Condenser Coil |
Type |
Aluminium / Copper Corrugated Fin With Inner Groove Copper Tube |
| Face area |
Sq. Ft. |
41.67 |
48 |
67 |
| Rows..Fins/In |
2....16 |
3....14 |
3....10 |
| Tube Size |
Inch |
3/8 |
| Condenser Fan |
Type |
Propeller Fan : Vertical Discharge : Direct Drive |
| Diameter |
Inch |
24 |
30 |
| Diameter |
mm |
610 |
761 |
| Rpm. |
900 |
| Qty. |
2 |
3 |
| Each Motor |
H.P. |
3/4 |
1 |
| Air Quantity |
CFM |
14,000 |
20,000 |
30,000 |
| Refrigerant |
Type |
R-22 (R-407C On Requset Only) |
| Charge |
Nitrogen |
| Water Chiller |
Type |
Plate Heat Exchanger |
| Chilled Water Flowrate |
GPM |
37 |
48 |
58 |
74 |
Chilled Water Temp.
In / Out |
Deg. C |
12.8 / 7.2 |
| Chilled Water pressure Drop |
Ft. WG |
7.15 |
6.07 |
7.5 |
7.15 |
| Water Connection In / Out |
Inch |
1-1/4 |
2 |
| Compressor (Each) |
V/P/Hz |
415 / 3 / 50 ~ 440 / 3 / 60 |
| Power Input |
Watt |
18,200 |
10,800 |
13,622 |
18,200 |
| FLA. |
Amp. |
35.7 |
22.9 |
24.2 |
35.7 |
| LRA. |
Amp. |
215 |
145 |
175 |
215 |
| Fan Motor (Each) |
V/P/Hz |
415 / 3 / 50 ~ 440 / 3 / 60 |
| Power Input (Watt) |
Watt |
850 |
1,470 |
| FLA. |
Amp. |
1.2 |
2.3 |
| Weight Operation |
Kgs. |
470 |
514 |
572 |
740 |
|
| NOTES: |
| - |
* Nominal capacity based on 7.2 deg. C section temperature and 35 deg. C ambient
temperature |
|
|
