Package Water Cooled Chiller Unit |
|

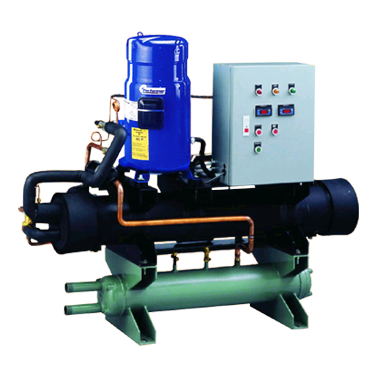

![](Aircon/ACI-50.1.png) |
Features/Benefits |
-
-
-
- |
Quality design and construction make the PWC-CWB
(Water-Cooled) units the preferred choice
Easy installation The PWC-CWB chiller has a
compact design that fits through a standard door
opening and requires minimal indoor space. The
PWC-CWB chiller is delivered as a complete package
for easy installation. There are no extra controls,
clocks, starters, or other items to install.
The PWC-CWB unit also provides a single location
electrical power entrance (using the accessory
field-installed control power transformer) and quick,
easy piping.
The PWC-CWB units are designed in a quick start-up
is assured once installation is complete, since each
PWC-CWB unit is manufactured at an ISO 9002-listed
manufacturing facility to guarantee quality. In addition,
all PWC-CWB units are tested under load at the factory
to provide reliable start-up. |
|
|
|
|
Capacity Range From: |
2 - 5 Tons |
For More Detail: |
Download |
|
MODEL: PWC-CWB-H |
002 |
003 |
004 |
005 |
006 |
|
![Purchase](images/Purchaselogo.png) |
![Purchase](images/Purchaselogo.png) |
![Purchase](images/Purchaselogo.png) |
![Purchase](images/Purchaselogo.png) |
![Purchase](images/Purchaselogo.png) |
Nominal Cooling |
Capacity |
BTUH |
24730.0 |
29160.0 |
35420.0 |
49580.0 |
59200.0 |
Tons |
2 |
2 |
3 |
4 |
5 |
KWH |
7.3 |
9 |
10.4 |
14.5 |
17 |
No. Of Circuits1 |
Compressor |
Type |
Rotary |
Scroll |
HP. |
2-1/2 |
2-1/2 |
3 |
4-1/2 |
6 |
Qty. |
1 |
Water Cooled Condenser |
Water Flowrate |
GPM |
6.4 |
7.8 |
9.6 |
13 |
17 |
Entering / Leaving
Water Temp. |
° F |
90 / 100 |
° C |
32 / 38 |
Water Pressure Drop |
Ft. WG |
8 |
8.5 |
9.3 |
10.8 |
19 |
No. of Water Passes |
4 |
Water Connection In / Out |
(mm) (in) |
(25 / 25) (1 / 1) |
Qty./Unit |
1 |
Water Chiller |
No. of Circuits |
1 |
Chilled Water Flowrate |
(GPM) |
5 |
6 |
7.08 |
10 |
11.84 |
Chilled Water Temp.
In/Out |
° F |
55 / 45 |
° C |
13 / 7 |
Chilled Water Pressure Drop |
(Ft. WG) |
1.82 |
1.2 |
1.61 |
2.77 |
3.94 |
Water Connection In/Out |
(mm) (in) |
(19) (3/4) |
(25) (1) |
Qty. / Unit |
1 |
Refrigerant |
Type |
R-22 (R-407C On Request Only) |
Charge |
Holding |
Compressor (Each) |
V / PH / Hz |
208-220V / 1P / 50-60Hz |
380-440V / 3P / 50-60 Hz |
RLA. |
Amp. |
8.8 |
16.4 |
19.3 |
8.9 |
10 |
LRA. |
Amp. |
47 |
82 |
82 |
65.5 |
74 |
Weight Operation |
Kgs. |
120 |
140 |
145 |
170 |
175 |
|
NOTES: |
-
-
-
-
-
-
- |
RLA = Rated Load Amp.
LRA = Locked Rotor Amp.
* Nominal Cooling Capacity Based on 3°C Suction Temp. and 35 °C Ambient Temp.
Fouling Factor 0.0005 Ft ².h.F / Btu in Chiller
Temperature: 1 °C = 33.8 °F
1 °F = -17.2 °C
Air Flow: 1 CFM = 1.699011 CMH |
|
|
|
