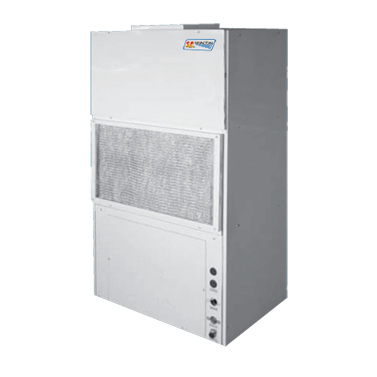

| Package Water Cooled Air Handling Unit (Ducted) |
| |
 |
| Features/Benefits |
-
-
-
-
-
-
-
- |
High efficiency, hermetic, refrigerant cooled compressor.
High efficiency tube-in-tube
condenser.
Electrical supply connections and knockouts provided.
Lower operating cost.
Low noise operation.
HP and LP cut-out switches.
Air filters
Electrical panel. |
| |
|
. |
|
| Capacity Range From: |
2 - 20 Tons |
For More Detail: |
Download |
|
| MODEL PWC-DX-C/H |
025 |
030 |
036 |
040 |
050 |
| Cooling Capacity |
|
 |
|
|
|
|
| BTUH |
25,000 |
31,000 |
37,000 |
44,000 |
50,000 |
| Tons |
2.08 |
2.58 |
3.08 |
3.67 |
4.2 |
| kW |
7.3 |
9.1 |
10.8 |
12.9 |
14.65 |
| Nominal Air Flow |
CFM |
900 |
1,200 |
1,600 |
1,800 |
1,900 |
| CMH |
1,530 |
2,040 |
2,720 |
3,060 |
3,228 |
| L/S |
420 |
570 |
750 |
850 |
897 |
| Air Pressure Drop |
Pa |
80-100 |
| Compressor |
| Type |
Scroll |
| Refrigerant |
R-22 (R407) |
| Power Supply |
V/Ph/Hz |
240/1/50 |
[380 ~ 415V / 3P / 50Hz] [ 440 ~ 480V / 3P / 60Hz ] |
| Rated Current |
Amps |
14.3 |
5.7 |
7.1 |
7.2 |
5.6 |
| Power Input |
kW |
3.1 |
3.8 |
4.7 |
4.7 |
3.7 |
| Condenser |
| Type |
|
Tube-In-Tube |
| Entering Water Temperature |
º C |
32 º C |
| Leaving Water Temperature |
º C |
38 º C |
| Water Flow Rate |
GPM |
7.5 |
9.4 |
11.3 |
12.5 |
12.5 |
|
L/S |
0.47 |
0.59 |
0.71 |
0.79 |
0.79 |
| Water Pressure Drop |
kPa |
30 |
32 |
38 |
45 |
34 |
|
FT. WG |
10 |
11 |
13 |
15 |
11 |
| Water Connection In/Out FPT |
Inch |
3/4” FPT ~ (19) |
1-1/2” |
|
mm |
19 |
|
| Evaporator |
| Type |
Copper Tube And Aluminium Fins |
| Blower Motor |
Watts |
330 |
400 |
400 |
400 |
352 |
| Weight |
kgs |
116 |
119 |
125 |
131 |
240 |
|
| |
| MODEL PWC-DX-C/H |
60 |
80 |
120 |
180 |
240 |
| Cooling Capacity |
BTUH |
60,000 |
80,000 |
120,000 |
180,000 |
240,000 |
| Tons |
5 |
6.67 |
10 |
15 |
20 |
| kW |
17.58 |
23.44 |
35.16 |
52.75 |
70.34 |
| Nominal Air Flow |
CFM |
2,000 |
3,000 |
4,000 |
6,000 |
8,000 |
| CMH |
3,398 |
5,097 |
6,796 |
10,194 |
13,592 |
| L/S |
940 |
1,400 |
1,800 |
2,832 |
3,776 |
| Air Pressure Drop |
Pa |
80-150 |
| Compressor |
| Type |
Scroll |
| Refrigerant |
R-22 (R407) |
| Power Supply |
V/Ph/Hz |
[380 ~ 415V / 3P / 50Hz] [ 440 ~ 480V / 3P / 60Hz ] |
| Rated Current |
Amps |
6.8 |
9.1 |
13.5 |
16.2 |
19.5 |
| Power Input |
kW |
4.5 |
6 |
8.9 |
10.66 |
12.83 |
| Condenser |
| Type |
Tube-In-Tube |
| Entering Water Temperature |
º C |
32 º C |
| Leaving Water Temperature |
º C |
38 º C |
| Water Flow Rate |
GPM |
15 |
20 |
30 |
55 |
60 |
|
L/S |
0.95 |
1.26 |
1.89 |
3.47 |
3.79 |
| Water Pressure Drop |
kPa |
60 |
36 |
30 |
32 |
17 |
|
FT. WG |
20 |
12 |
10 |
11 |
6 |
| Water Connection In/Out |
Inch |
1-1/2” |
2-1/2” |
| Evaporator |
mm |
|
|
| Type |
Copper Tube And Aluminium Or Copper Fins |
| Blower Motor |
Watts |
352 |
290 x 2 |
352 x 2 |
| Weight |
kgs |
250 |
320 |
400 |
470 |
600 |
|
| NOTES: |
-
-
-
-
- |
Capacity based on 27°CDB, 19°CWB Air Entering.
Condenser Water Supply 32°C Condenser Water Return 37°C
Temperature: 1 °C = 33.8 °F
1 °F = -17.2 °C
Air Flow: 1 CFM = 1.699011 CMH |
|
|
