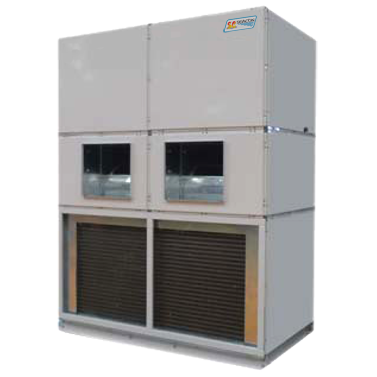

Package Water Cooled Air Handling Unit (Ducted High Static) |
|
![](Aircon/ACI-36.1.png) |
Features/Benefits |
-
-
-
-
-
-
-
- |
High efficiency, hermetic, refrigerant cooled compressor.
High efficiency tube-in-tube condenser.
Electrical supply connections and
knockouts provided.
Lower operating cost.
Low noise operation.
HP and LP cut-out switches.
Air filters
Electrical panel. |
|
|
. |
|
Capacity Range From: |
5.8 - 66.7 Tons |
For More Detail: |
Download |
|
MODEL PWC-DX-C/H |
007 |
009 |
010 |
012 |
015 |
020 |
025-2 |
Cooling Capacity |
|
![Purchase](images/Purchaselogo.png) |
![Purchase](images/Purchaselogo.png) |
![Purchase](images/Purchaselogo.png) |
![Purchase](images/Purchaselogo.png) |
![Purchase](images/Purchaselogo.png) |
![Purchase](images/Purchaselogo.png) |
![Purchase](images/Purchaselogo.png) |
BTUH |
70,000 |
90,000 |
100,000 |
125,000 |
140,000 |
200,000 |
250,000 |
Tons |
5.83 |
7.5 |
8.33 |
10.42 |
11.67 |
16.67 |
20.83 |
kW |
20.4 |
26.3 |
29.2 |
36.5 |
40.8 |
58.3 |
73 |
Nominal Air Flow |
CFM |
2,200 |
3,000 |
3,300 |
4,000 |
5,000 |
6,600 |
8,200 |
CMH |
3,740 |
5,100 |
5,610 |
6,800 |
8,500 |
11,220 |
13,940 |
L/S |
1,040 |
1,410 |
1,550 |
1,880 |
2,360 |
3,110 |
3,860 |
Air Pressure Drop |
kPa |
150 |
250 |
Compressor |
Type |
Scroll |
Quantity |
1 |
2 |
Refrigerant |
R-22 (R407) |
Power Supply |
V/P/Hz |
[380 ~ 415V / 3P / 50Hz] [ 440 ~ 480V / 3P / 60Hz ] |
Rated Current |
Amps |
14.2 |
17.3 |
19.2 |
22.9 |
14.2 x 2 |
19.2 x 2 |
22.9 x 2 |
Compressor |
H.P. |
7 |
9 |
10 |
12.5 |
7 x 2 |
10 x 2 |
12.5 x 2 |
Condenser |
Type |
Tube-In-Tube |
Entering Water Temperature |
º C |
32 º C |
Leaving Water Temperature |
º C |
38 º C |
Water Flow Rate |
GPM |
17.5 |
22.5 |
25 |
31.3 |
35 |
50 |
62.5 |
L/S |
1.1 |
1.42 |
1.58 |
1.97 |
2.21 |
3.1 |
3.94 |
Evaporator |
Type |
Copper Tube And Aluminium Fins |
Blower Motor |
H.P. |
1 |
2 |
3 |
5 |
|
|
MODEL PWC-DX-C/H |
30 |
35 |
40 |
50 |
60 |
80 |
Cooling Capacity |
BTUH |
300,000 |
350,000 |
400,000 |
500,000 |
600,000 |
800,000 |
Tons |
25 |
29.17 |
33.33 |
41.67 |
50 |
66.67 |
kW |
87.5 |
102.1 |
116.7 |
145.8 |
175 |
233.3 |
Nominal Air Flow |
CFM |
10,000 |
11,000 |
13,300 |
16,600 |
20,000 |
26,600 |
CMH |
17,000 |
18,700 |
22,610 |
28,220 |
34,000 |
45,220 |
L/S |
4,710 |
5,180 |
6,260 |
7,820 |
9,420 |
12,530 |
Air Pressure Drop |
kPa |
250 |
Compressor |
Type |
|
Semi-Hermatic Reciprocating |
Quantity |
|
1 |
2 |
Refrigerant |
|
R-22 (R407) |
Power Supply |
V/Ph/Hz |
[380 ~ 415V / 3P / 50Hz] [ 440 ~ 480V / 3P / 60Hz ] |
Rated Current |
Amps |
52.1 |
64.1 |
75.7 |
40.2 x 2 |
52.1 x 2 |
75.7 x 2 |
Compressor |
H.P. |
30 |
35 |
40 |
25 x 2 |
30 x 2 |
40 x 2 |
Condenser |
Type |
|
Shell And Tube |
Entering Water Temperature |
º C |
32 º C |
Leaving Water Temperature |
º C |
38 º C |
Water Flow Rate |
GPM |
75 |
87.5 |
100 |
125 |
150 |
200 |
L/S |
4.73 |
5.51 |
6.3 |
7.88 |
9.45 |
12.6 |
Evaporator |
Type |
Copper Tube And Aluminium Fins |
Blower Motor |
H.P. |
7.5 |
10 |
15 |
20 |
|
NOTES: |
-
-
-
-
- |
Capacity based on 27°CDB, 19°CWB Air Entering.
Condenser Water Supply 32°C Condenser Water Return 37°C
Temperature: 1 °C = 33.8 °F
1 °F = -17.2 °C
Air Flow: 1 CFM = 1.699011 CMH |
|
|
