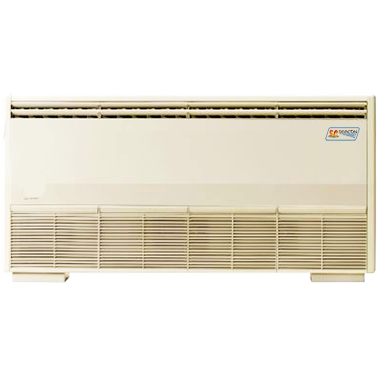

| Ceiling Suspended Unit or Floor Mounted |
| |
 |
| Features/Benefits |
-
-
-
-
-
-
-
-
- |
Compact casing
Air Sweep Control
Saves space where there is no false ceiling
Uniform air flow and temperature distribution
Very easy to install, service and clean from below
Fan coil is equipped with a Smart Confort Technologies
to enble you the choice of 8 different air flow direction.
Air distribution automatically set for cooling or heating
mode refrigerant piping from the rear, right or top and
two drain pipe directions possible
Standard 230V controls (110V on requested).
Selected model include Flare liquid & suction service
valves to ensure fast and easy
installation and servicing. |
|
| |
|
| Capacity Range From: |
0.83 - 5 Tons |
For More Detail: |
Download |
|
| Fan Coil Unit Model |
| (Direct Expansion Cooling or Chilled Water |
| Directy Ecpansion |
CS-DX |
10 |
12 |
18 |
25 |
30 |
| |
|
 |
|
|
|
|
| Heating |
CS-DXJ |
010J |
012J |
018J |
025J |
030J |
| |
|
|
|
|
|
|
| Chilled Water |
CS-CW |
010W |
012W |
028W |
030W |
035W |
| Nominal Capacity Cooling |
|
|
|
|
|
|
| BTUH |
10,000 |
12,000 |
18,000 |
25,000 |
30,000 |
| Tons |
0.83 |
1 |
1.5 |
2.08 |
2.5 |
| Watt |
2,930 |
5,274 |
3,517 |
7,327 |
8,792 |
| Nominal Capacity Heating |
BTUH |
10,800 |
12,180 |
18,000 |
27,600 |
31,800 |
| Tons |
0.9 |
1.01 |
1.5 |
2.3 |
2.65 |
| Watt |
3,170 |
3,570 |
5,275 |
8,089 |
9,320 |
| Rated Air Flow At High Speed |
CFM |
300 |
400 |
600 |
800 |
1000 |
| CMH |
510 |
680 |
1,019 |
1,359 |
1,699 |
| Fan Coil Unit |
| Evaporator Fan |
Type |
Multi Blade Centrifugal Fan |
| Motor |
Watt |
86 |
114 |
158 |
225 |
| QTY. |
1 |
| Power Supply |
V/P/Hz |
220V / 1P/ 50-60Hz |
| Coil |
Type |
Aluminium Louver Fin With Innergroove Tube |
| Control |
Type |
Built In Digital Thermostat |
| Air Filter |
Type |
Washable P. P. Net |
| Connection |
| Suction Line OD |
Inch |
1/2 |
5/8 |
3/4 |
| Liquid Line OD |
Inch |
3/8 |
| Drain Line OD |
Inch |
7/8 |
| Weight |
KGS. |
28 |
33 |
40 |
|
46 |
| Fan Coil Unit Model |
| (Direct Expansion Cooling or Chilled Water |
| Directy Ecpansion |
CS-DX |
36 |
363 |
44 |
50 |
60 |
|
|
|
|
|
| Heating |
CS-DXJ |
036J |
363J |
044J |
050J |
060J |
|
|
|
|
|
| Chilled Water |
CS-CW |
036W |
363W |
044W |
050W |
403W |
|
|
|
|
|
| Nominal Capacity Cooling |
BTUH |
34,000 |
34,000 |
45,000 |
50,000 |
60,000 |
| Tons |
2.83 |
2.83 |
3.75 |
4.17 |
5 |
| Watt |
9,964 |
9,964 |
13,188 |
14,654 |
17,584 |
| Nominal Capacity Heating |
BTUH |
37,300 |
37,300 |
47,000 |
52,700 |
64,300 |
| Tons |
3.11 |
3.11 |
3.92 |
4.39 |
5.36 |
| Watt |
10,932 |
10,932 |
13,774 |
15,445 |
18,757 |
| Rated Air Flow At High Speed |
CFM |
1,200 |
1,200 |
1,600 |
1,600 |
2,000 |
| CMH |
2,039 |
2,039 |
2,718 |
2,718 |
3,398 |
| Fan Coil Unit |
| Evaporator Fan |
Type |
Multi Blade Centrifugal Fan |
| Motor |
Watt |
86 |
114 |
158 |
225 |
| QTY. |
1 |
| Power Supply |
V/P/Hz |
220V / 1P/ 50-60Hz |
| Coil |
Type |
Aluminium Louver Fin With Innergroove Tube |
| Control |
Type |
Built In Digital Thermostat |
| Air Filter |
Type |
Washable P. P. Net |
| Connection |
| Suction Line OD |
Inch |
3/4 |
| Liquid Line OD |
Inch |
3/8 |
1/2 |
| Drain Line OD |
Inch |
7/8 |
| Weight |
KGS. |
46 |
54 |
80 |
90 |
95 |
|
|
